Horizontal Crimping Machine
Next > >

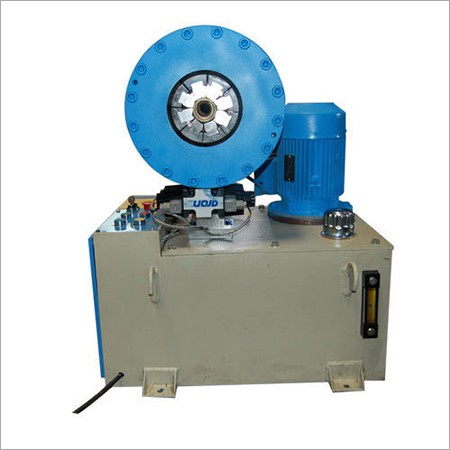

Horizontal Crimping Machine
Product Code : 01
Product Description
Technical Specifications
| Capacity Hose Size | 2" - SAE 100 R13 3" - SAE 100 R 1 (ID) |
| Machine Type | Hose/Pipe Crimping Machine |
| Power Source | Electric,Hydraulic |
| Work Head Through Bore | 140 mm (diameter) |
| Weight | Approx 350 kg |
| Overall Dimension | 700 x 600 x 750 mm (W x L x H) |
| Operating Voltage | 440 V AC , 3 Ph. / 220 V AC , 1 Ph |
| No of Segments | 8 |
| Motor | 3/ 2 HP |
| Maximum Opening | Die Size +55 mm |
| Master Die Shoe Length | 100 mm |
| Cycle Time | 25 Sec |
| Crimping Force | 400 T |
