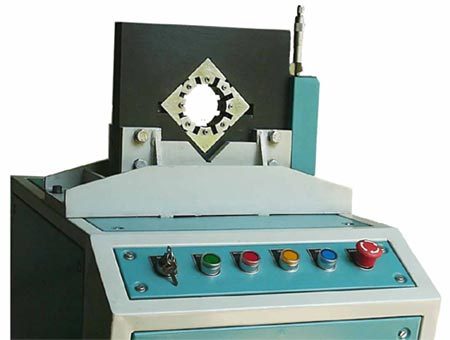

Horizontal Crimping Machines

Next > >

<< Previous

Send Inquiry

Product Code : HZ - 20

Brand Name : ANISH HYDRAULICS

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Piece/Pieces

Price
Price Range
175000.00 - 375000.00 INR

Product Description

We are an engineering based organization and have a number of deft engineers that offering premium quality range of Horizontal Crimping Machines. These machines are manufactured using supreme grade components under the guidance of deft team of professionals. Offered machines are used in the automobile industry for the application like brake hoses, diesel pipelines and similar external wire braided hose pipes. In order to ensure their quality, the offered machines are stringently tested on various defined parameters by our quality controllers. These Horizontal Crimping Machines are available in varied specifications at negotiable prices.

Features:

Robust construction
Unmatched performance
Long service life
Easy installation

Other Info:

This 8 segment Horizontal Machine is tailored to meet the requirement of hoses used in automobile industry for the application like Brake hoses, Diesel pipelines and similar external wire braided hose pipes.

The Die magazine is closed radially within the accuracy of 0.1 mm on diameter. The caps having external diameter up to 28 mm before crimping and a wall thickness of 0.8 mm can be effectively crimped on this machine.

Specification

Capacity Hose Size (ID)	3/4"
Maximum Opening (mm)	Die Size +20
Crimping Force	10 T
Cycle Time	7 Sec.
Motor (HP)	1.5
Operating Voltage	440 V / AC, 3 Ph.
Controls	Electro hydraulic
No. of Segments	8
Master Die Shoe Length (mm)	40
Overall Dimension - W x L x H (mm)	500 x 950 x 1300
Weight (Approx.) (Kg.)	95 Kg
