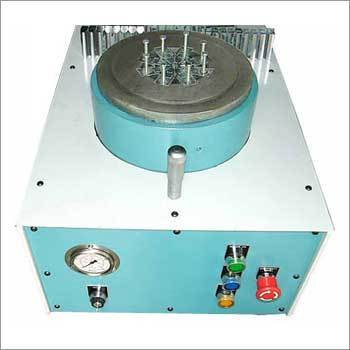

Vertical Hose Crimping Machine

Vertical Hose Crimping Machine
Vertical Hose Crimping Machine
Send Inquiry
Product Code : ac-135
Brand Name : ANISH HYDRAULICS
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit/Units
  • Price Range
  • 175000.00 - 375000.00 INR
Product Description

Our advanced production setup is regularly updated to match the new trends of the market and offer finest quality Vertical Hose Crimping Machine. Offered machine is widely suited for small and medium batch production of high-pressure hose assemblies. By making use of supreme quality components, the offered machine is manufactured at our advanced production unit under the direction of our skilled professionals. Before delivering it to the clients end, our offered Vertical Hose Crimping Machine is checked thoroughly by our quality controllers on diverse quality parameters.

Features:

  • Longer service life

  • Robust design

  • Unmatched performance

  • Less maintenance

Technical Specifications


Capacity Hose Size

2" SAE 100 R2 1.1/4" SAE 100 R13

Machine Type

Hose/Pipe Crimping Machine

Power Source

Hydraulic,Electric

Weight (kg)

Approx 350

Voltage (V)

440 V / AC, 3 Ph

Work Head Through Bore

100 mm

Overall Dimension

780 x 600 x 1250 mm (W x L x H )

No of Segments

8

Motor

2 HP

Maximum Opening

Die Size +24 mm

Master Die Shoe Length

100 mm

Cycle Time

45 sec.max.

Crimping Force

300 (T)


Capacity Hose Size (ID)

2 SAE 100 R2
1.1/4 SAE 100 R13

Maximum Opening (mm)

Die Size +24

Work Head Through Bore

100 mm

Crimping Force (T)

300

Cycle Time

45 Sec.max.

Motor (HP)

2

Operating Voltage

440 V / AC, 3 Ph.

Controls

Electro hydraulic

No. of Segments

8

Master Die Shoe Length (mm)

100

Overall Dimension - W x L x H (mm)

780 x 600 x 1250

Weight (Approx.) (Kg.)

350



Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Others
  • Supply Ability
  • As per client requirement Per Day
  • Delivery Time
  • 3-4 Week
  • Main Domestic Market
  • All India
