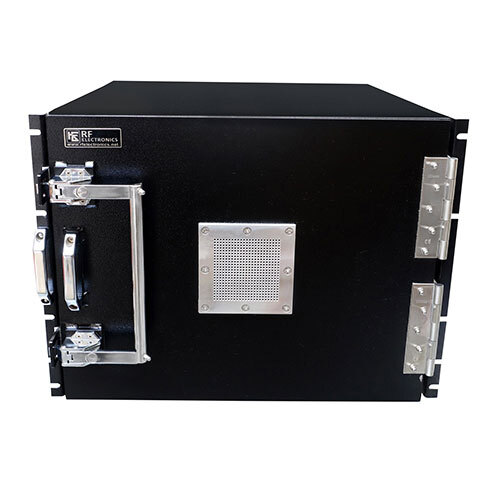

HDRF-1724-G RF Shield Test Box

HDRF-1724-G RF Shield Test Box

Excellent RF isolation is provided by the HDRF-1724-G RF Shield Test Box, enabling dependable testing of wireless technologies like Wi-Fi, Bluetooth, 4G, and 5G. Its construction with premium shielding materials guarantees optimal performance precision and little signal leakage. User-friendly access, flexible I/O connectivity, and effective internal space for seamless device configuration are all aspects of its sturdy, small design. The HDRF-1724-G's broad frequency range makes it perfect for both laboratory and industrial settings, allowing for accurate, interference-free testing. For engineers who are concerned with RF performance and compliance verification, this shield box is a reliable option.

Features :-

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax, be
  • Bluetooth, RFID, 3G , LTE , 5G FR1 Device testing
  • Wide range of I/O connector options.
  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Standard 24” Rack Mount Design ; Rugged construction for long life
  • Customized Size to suit application specific requirements, ideal for test platforms.

RF Isolation

Shielding @ Freq. Range

Shielding @ Freq. Range

Shielding @ Freq. Range

≥ 130 dB @  20 MHz ~ 1 GHz

> 95 dB @ 5 GHz

> 90 dB @ 10 GHz

> 120 dB @ 3 GHz

> 95 dB @ 8 GHz

> 90 dB @ 12 GHz

 Mechanical Details :-

  • 1 fan:  At rear side wall of shielded enclosure.
  • 2 cut-off waveguide air vents: First at front door. Second at rear side.
  • I/O Access panels on rear wall of the shielded enclosure.

Standard Accessories Included with the Box :-

  • Ultra Silent 12VDC Cooling Fan  with Universal Input Voltage Adapter
  • Option: 120MM 1800 RPM / 78 CFM - Ultra Silent 12VDC Cooling Fan – On Demand)
  • Power strip with 5 Way Universal Folding Socket with Mains IDE Female Plug Socket to go with AC I/O Socket of Box.
  • Fixed LED Light Mounted on the ceiling inside the Box with Power Supply Adapter.
  • Wooden - Mica Base Plate inside the box as an insulated surface - to place DUT and other units inside the box
