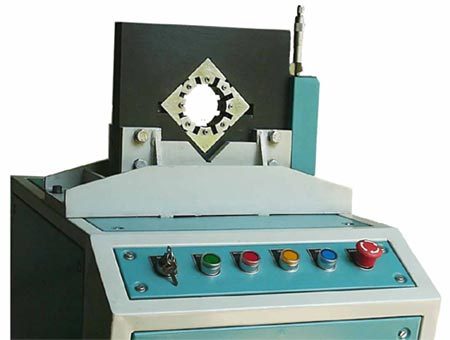

Vertical Crimping Machine

Vertical Crimping Machine

Product Details:

  • Supply Ability : Per Day
175000.00 - 375000.00 INR
X

Price And Quantity

  • 175000.00 - 375000.00 INR
  • 1 Piece

Trade Information

  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Per Day
  • 3-4 Week
  • Box Packing
  • All India

Product Description

With a sound production unit, we are indulged in manufacturing and supplying high quality Vertical Crimping Machine. Our offered machine is tremendously used to meet the requirement of hoses used in automobile industry. The machine offered by us is manufactured using superior quality components under the guidance of our dexterous professionals and is tested by our quality analysts to ensure its durability at clients end. Further, this Vertical Crimping Machine is available in different technical specifications to meet the numerous needs of our clients.

Features:

  • Easy installation

  • Superior performance

  • High efficiency

  • Longer service life

Other Info:

Hose Assemblies UP TO 1 1/4 ID , SAE 100 R2 AND 1 IN. ID SAE 100 R13 4 Spiral Hoses.

Operation of the machine is very simple AND controlled by a single push button. A rotary switch puts the Mains ON. The crimping operation takes place in Auto-mode by pressing the push button 'CRIMP'. The machine is reversed at a preset position. The depth is controlled by setting a micrometer. The Machine is supplied with single phase or three phase motor as per the requirement Of the Customer.

Specification

Capacity
Hose Size (ID)

1" - SAE 100 R9

Maximum Opening (mm)

Die Size +45

Work Head Through Bore

120 mm

Crimping Force

200 T

Cycle Time

25 Sec.

Motor (HP)

1

Operating Voltage

440 V / AC, 3 Ph.

Controls

Electro hydraulic

No. of Segments

8

Master Die Shoe Length (mm)

75

Overall Dimension - W x L x H (mm)

700 x 550 x 600

Weight (Approx.) (Kg.)

100

Technical Specifications

Accuracy

0.1 mm

Machine Type

Hose/Pipe Crimping Machine

Power Source

Hydraulic, Electric

maximum crimping size

2.5 ID pipe with 4 spirals

Hose pipe diameter

6 to 50 mm (nominal bore)
